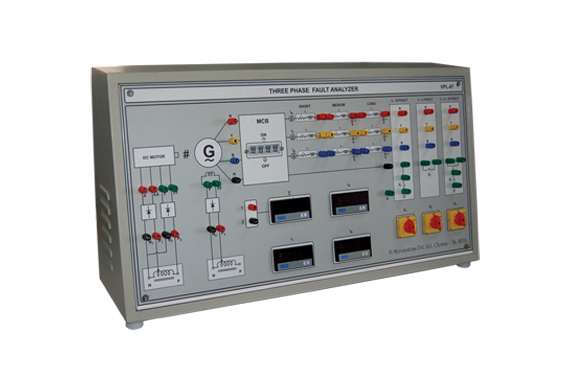

Three Phase Transmission Line Fault Analysis Trainer

Three Phase Transmission Line Fault Analysis Trainer :

Three phase Transmission line fault Simulation Study Module

SPECIFICATIONS :

• 3 phase power supply from 3 phase generator
• To simulate 3 phase balanced system fault and unsymmetrical faults
• Fault study with single line and double line in 3 phase system
• Theoretical calculations and verification with practical results.
• The transmission lines are simulated by high frequency Inductance & resistance for short, medium and long line.



TYPES OF FAULTS :

• - L-G-Fault
• - L-L-Fault
• - L-L-G-Fault
• - Single Conductor open fault
• - Double Conductor open fault
• - Fault through impedance
