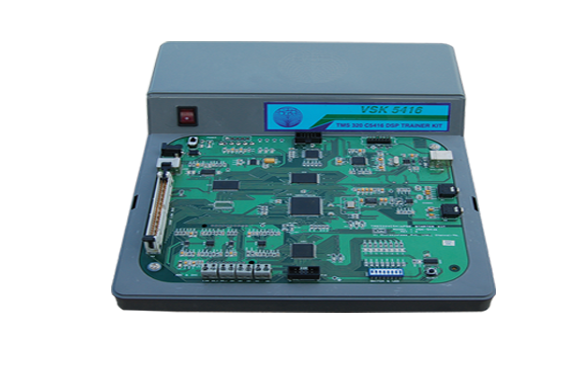

TMS320VC5416 Based DSP Trainer

TMS320VC5416 Based DSP Trainer

    This Kit provides new performance enhancing Features such as USB Communications. This is Suitable for applications that require optimized Combination of Power Performance & area. Suitable for the range of Signal processing applications, including speech Compression / decompression Speech recogniation, echo generation and Cancellation.

ON-CHIP FEATURES:

  • 160MIPS Performance, can operate upto 160MHz
  • Advanced multi bus architecture with one program bus, three data buses and four address buses
  • 40-bit arithmetic logic unit (ALU), including a 40-bit barrel shifter and two independent 40-bit accumulators
  • 17-bit × 17-bit parallel multiplier coupled toa 40-bit dedicated adder for non pipelined single-cycle multiply/accumulate (MAC) operation.
  • Compare, select, store unit (CSSU) for the add/compare selection of the Viterbi operator
  • Exponent encoder to compute the exponent of a 40-bit accumulator value in a single cycle
  • Two address generators, including eight auxiliary registers and two auxiliary register arithmetic units.

ON-BOARD FEATURES:

  • 4 Mbit (256Kb x 16) Flash Memory
  • 4 Meg (256K x 16-Bit) Static RAM for External Program/Data
  • 8 way DIP switch & LED
  • ON Board JTAG Emulator (XDS 100 version - 2)
  • PCM3002 AUDIO CODEC
  • Expansion connector for GPIO & Peripheral interface
  • On board USB for serial communication
