SCR Characteristics Trainer

SCR Characteristics Trainer :

SCR Characteristics Trainer offers an in-depth exploration of Silicon Controlled Rectifiers, providing comprehensive training on their operation, electrical characteristics, practical applications, and troubleshooting techniques. Ideal for engineers and technicians, this trainer equips users with essential skills to optimize and maintain SCR systems efficiently.


SPECIFICATIONS :

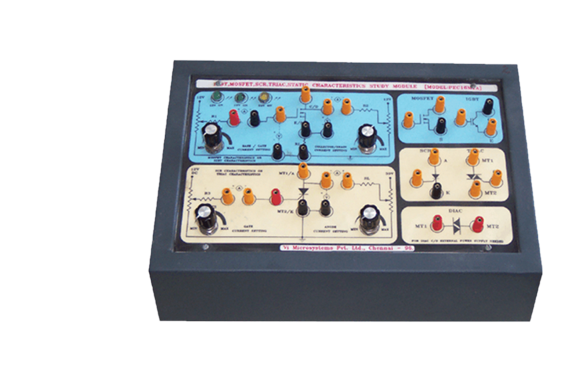

  • Basic static characteristics study trainer.
  • LM723 based variable DC power supply (0-30V) for SCR Vak.
  • LM723 based variable DC power supply (0-12V) for gate voltage of all devices.
  • Separate section for SCR/TRIAC characteristics.
  • Separate section for IGBT/MOSFET characteristics.
  • Two nos. fixed load resistor for all devices.
  • Four nos. potentiometer to vary all voltages.
  • LED indication for all power supply.
  • Three nos. digital multimeter for measurement of device parameters
  • For Diac external power supply to the provided.
