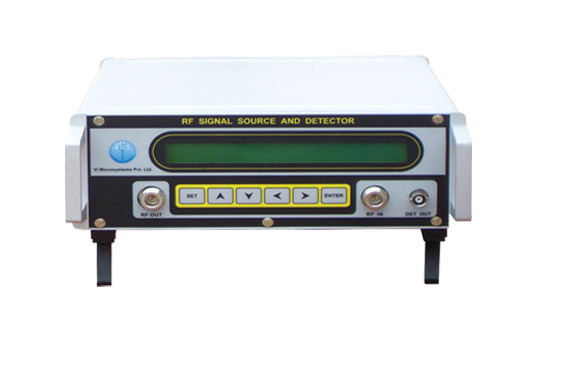

RF Signal Source with Detector
RF Signal Source with Detector :
RF Signal Source with Detector is designed to provide precise and versatile signal generation for a wide range of RF applications. This advanced system offers accurate signal output and integrated detection capabilities, enabling detailed analysis and measurement of RF signals. Ideal for research, development, and testing, it ensures reliable performance and flexibility in various environments, making it an essential tool for engineers and scientists working with radio frequency technologies.
Specification:
- Programmable attenuator 5, 10, 20, 30dBm up to 1.5GHz.
- 40 x 2 LCD Display to display the frequency of the RF signal and RF signal level.
- Output level : 0dBm +/2dB upto 1GHz, -5dBm, +/-2dB upto 3GHz, -10dBm, +/-3dB upto 6GHz.
- Output impedance : 50 ohm.
- One RF Power detector provided for 50 to 1000MHz frequency range and this output is measured.
- By an ADC and display on the LCD display.
- 6 Keys keypad provided to select the desired frequency, attenuation level, Sweep mode.
- Step size : 1MHz.
- Connectors.
- 2 Nos. of 'N' type connector for RF out and RF in.
- One "BNC" type connector for RF detector output.
