PLC & IOT Based Multi protocal Trainer

PLC & IOT Based Multi protocal Trainer :

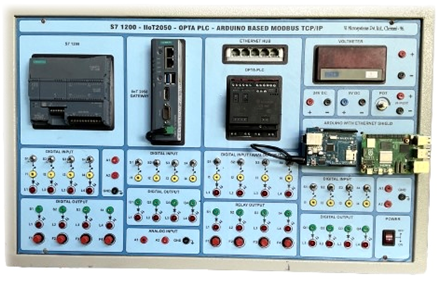

Our advanced integration solution seamlessly connects Siemens S7-1500 and S7-1200 PLCs, IoT 2050, Opta PLC, and Arduino via Modbus TCP/IP and OPC UA protocols. Designed for industrial IoT applications, this multi-protocol system ensures robust communication and interoperability among diverse devices, enabling streamlined data exchange and enhanced operational efficiency in complex industrial environments.

HARDWARE REQUIREMENTS :

• - Siemens S7-1500 PLC
• - Siemens S7-1200 PLC
• - Siemens IoT 2050 Gateway
• - Opta PLC
• - 8 port switch
• - Raspberry Pi 5

SOFTWARE REQUIREMENTS :

• - Siemens TIA Portal
• - OptaPLC IDE
• - Arduino IDE
• - Node-red
• - 8 port switch
• - Mendix

SPECIFICATIONS :

• PLC Control: A programmable logic controller (PLC) is included to control the variable frequency (VF) drive.
• Analog Channels: The PLC features analog input and output channels within a range of 0-10V DC for precise control and monitoring.
• Digital I/O: The PLC includes digital input/output channels operating at 24V DC for interfacing with various devices and sensors.
• Communication Interface: RS-232 or Ethernet communication cables are provided for seamless connectivity between the PLC and a PC for programming and monitoring.
• Induction Motor: A three-phase AC induction motor rated for 415V AC, operating at a frequency of 50Hz and a speed of 1500 RPM is included for practical applications.
