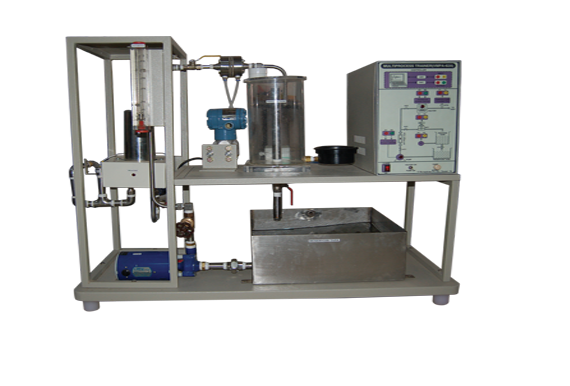

Multiple Input/Output Process Trainer
Multi Process Trainer :
Multiple Input/Output Process Trainer offers a dynamic and hands-on learning platform for mastering complex control systems and process automation. Featuring a range of input and output modules, this trainer enables users to simulate and analyze real-world process scenarios, providing valuable insights into system behavior and control strategies. Ideal for educational institutions and industry professionals, it supports comprehensive training and experimentation with various process control techniques, ensuring a practical and in-depth understanding of modern automation systems.
FEATURES:
- Pressure transmitter mounted at the bottom of the process tank
- Flow transmitter (DPT) with rotameter mounted across the pipe line to sense the flow of water
- Temperature sensor of (RTD) type mounted at the outlet of the heater
- An industrial type heater as a heat source
- FHP pump for water Circulation
- SS Storage tank of 15 liters Capacity
- Power driver provided to vary the pump speed and Heater Power.
- Orifice plate is used for pressure drop measurement.
- An electronic signal conditioner is provided.
- Bourdon tube pressure gauge is provided to measure the tank.
- Latest power driver is used to drive the pump & heater.
- USB/Serial port data acquisition is provided.
